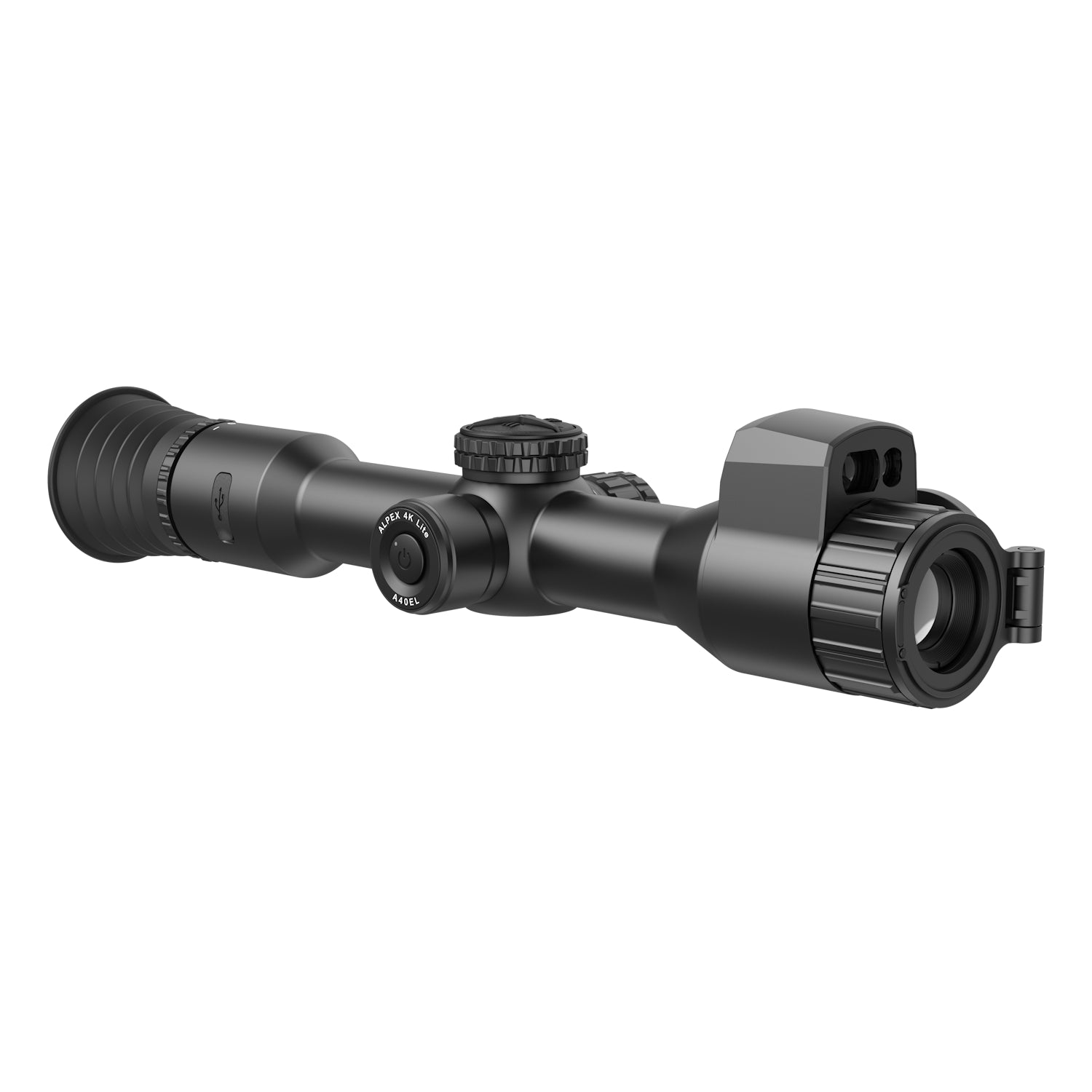

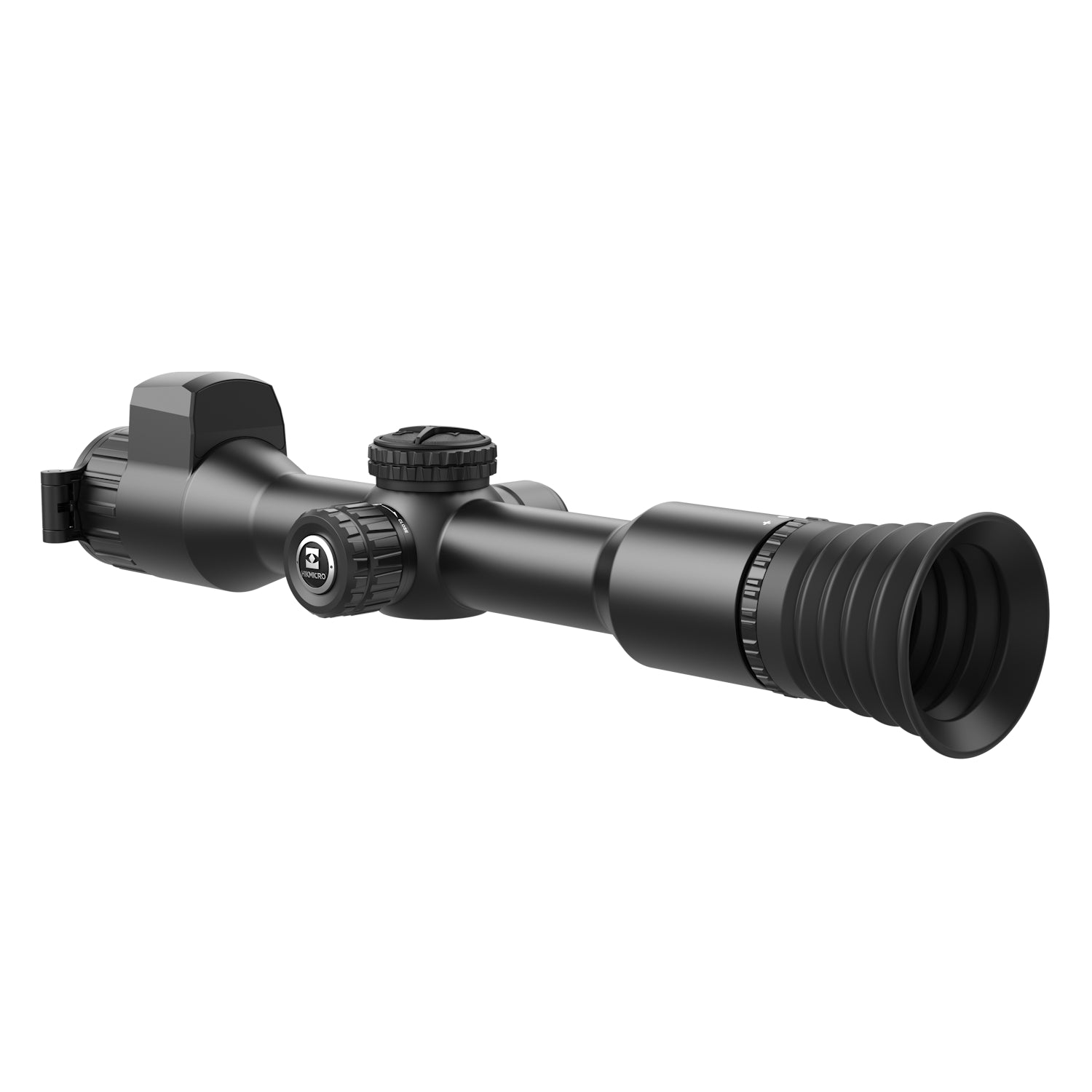

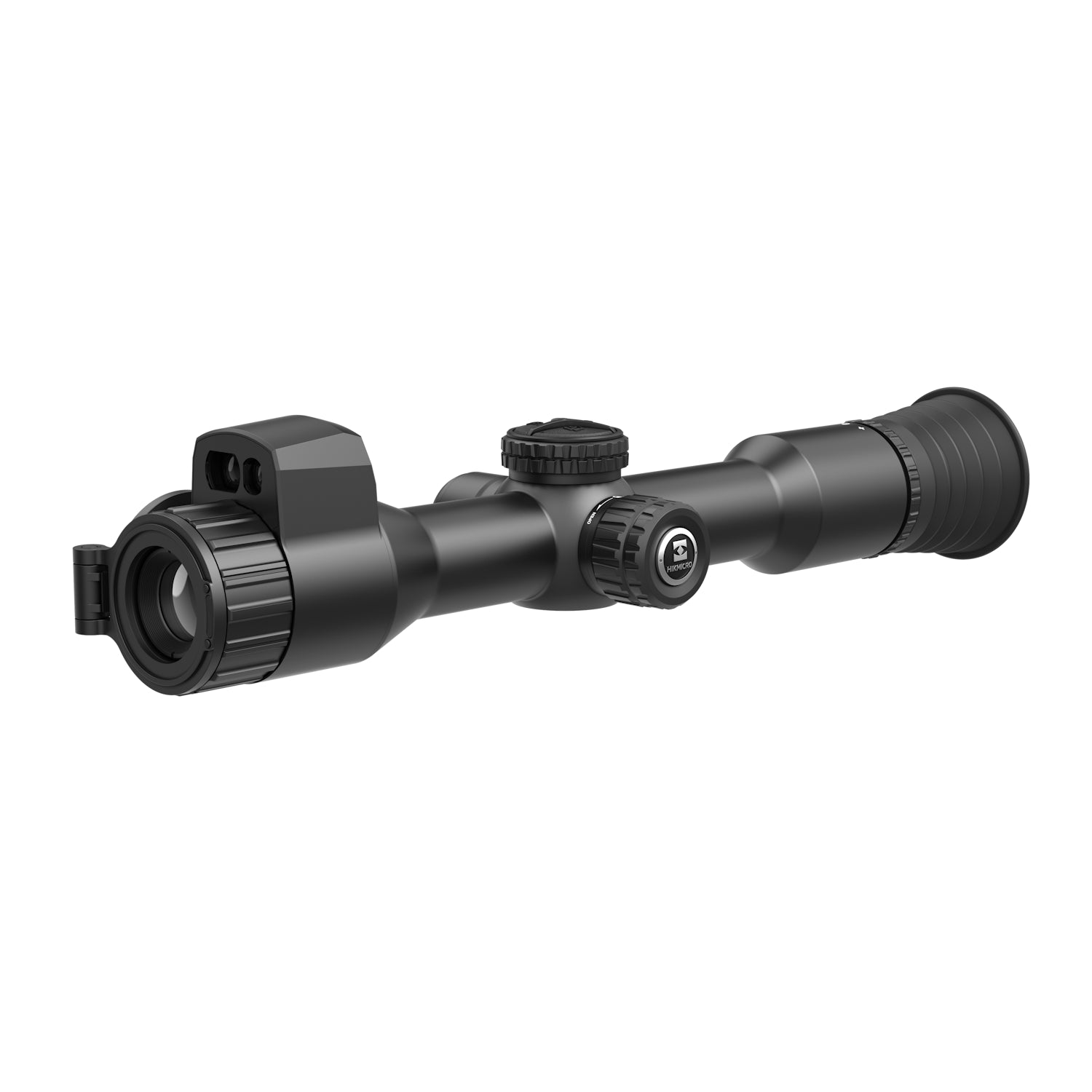

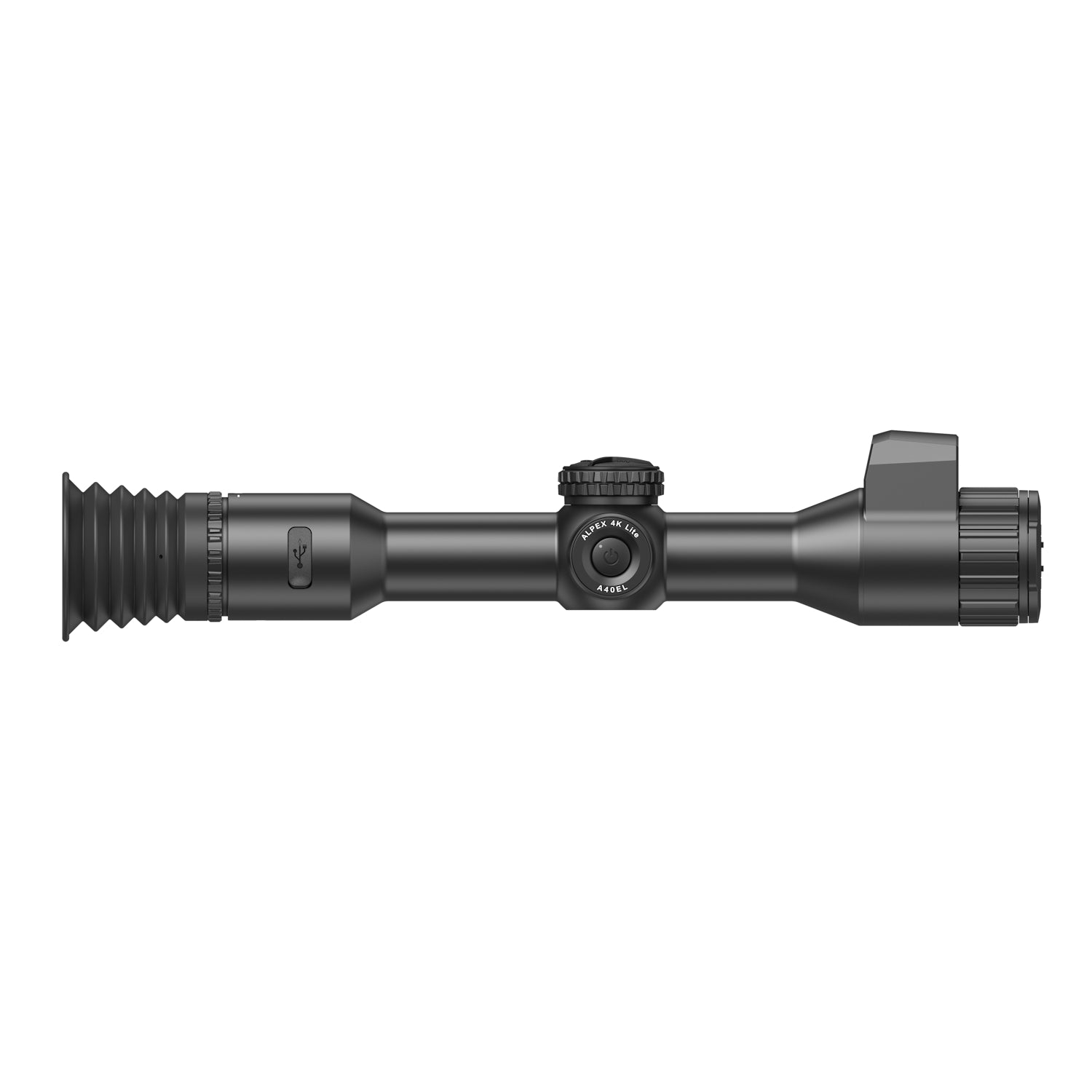

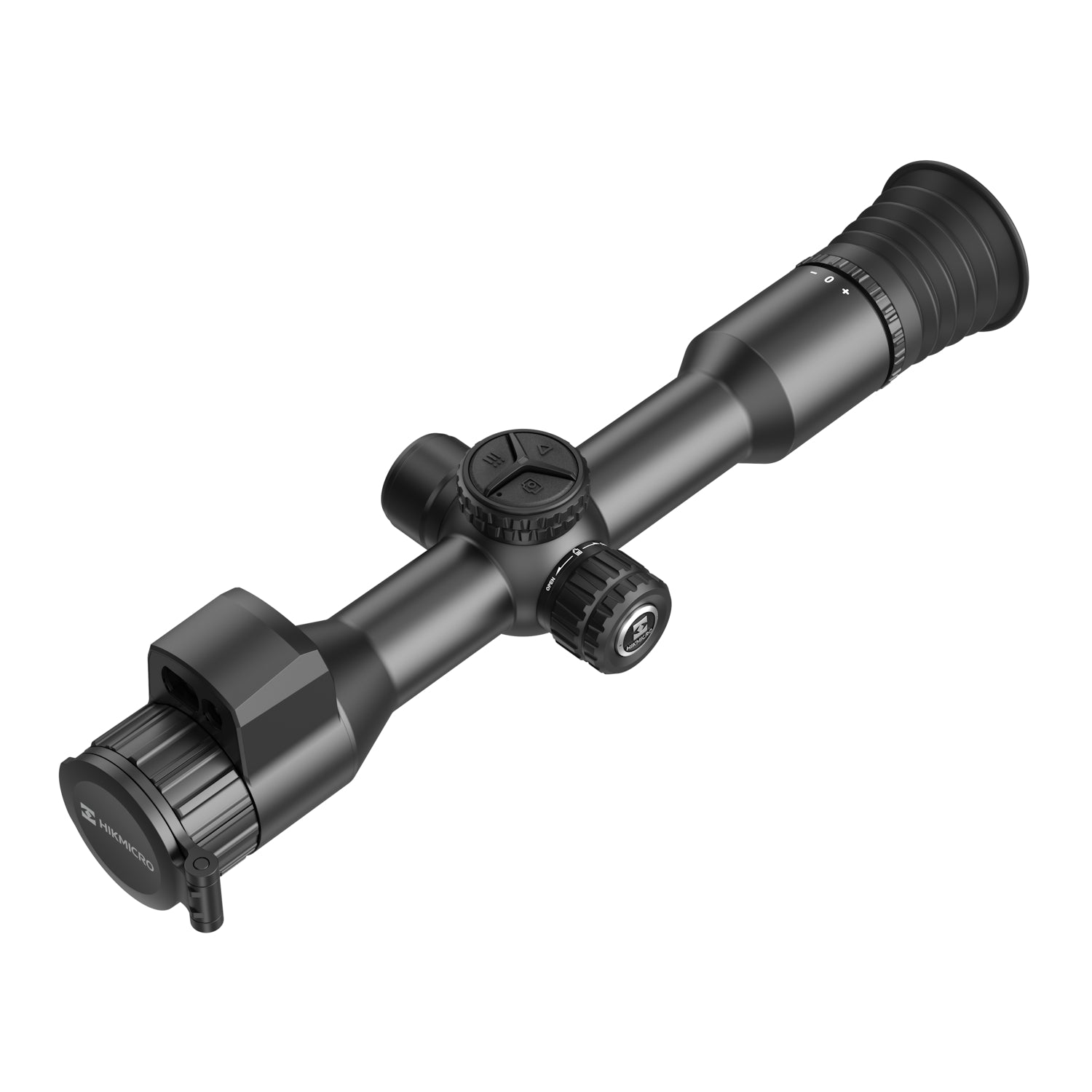

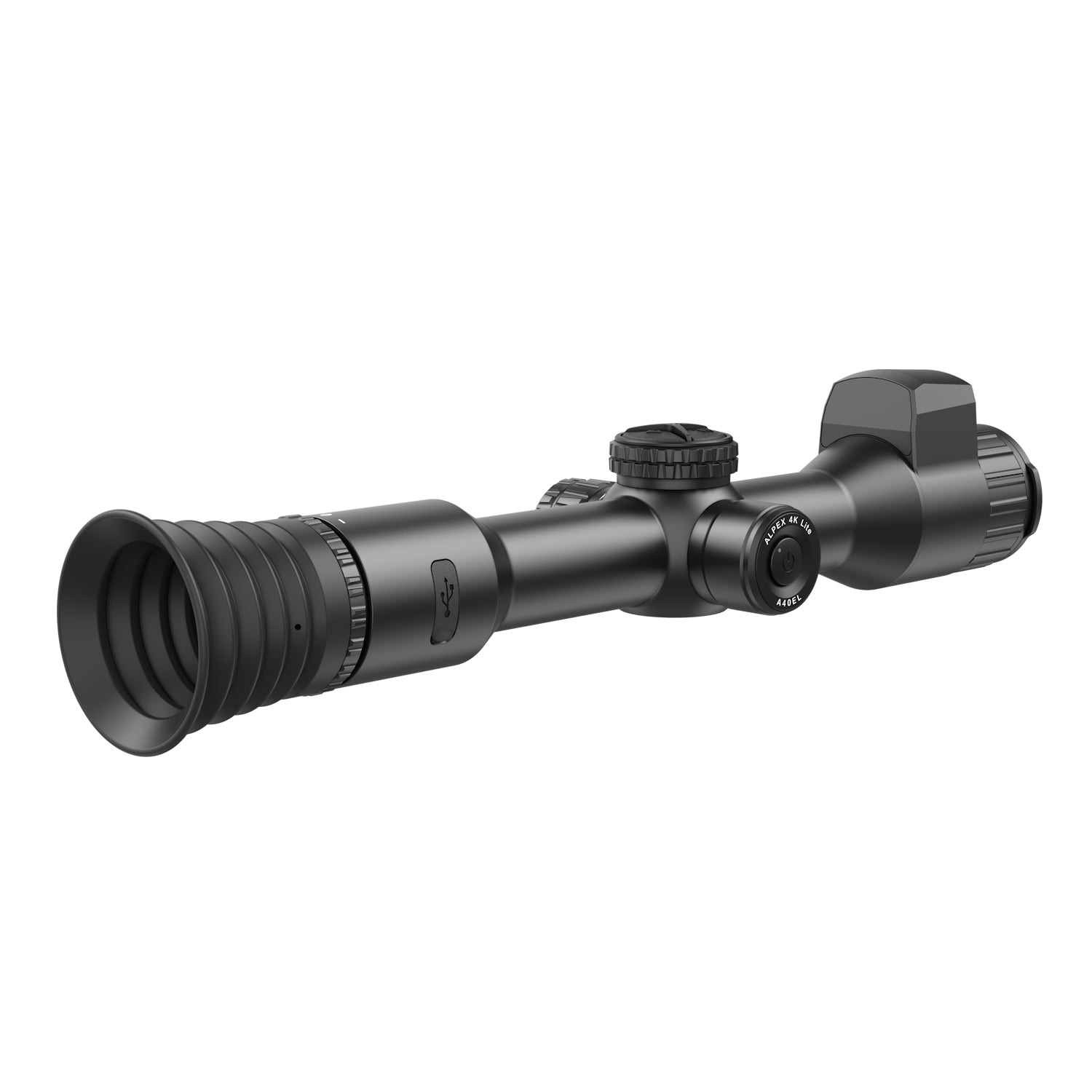

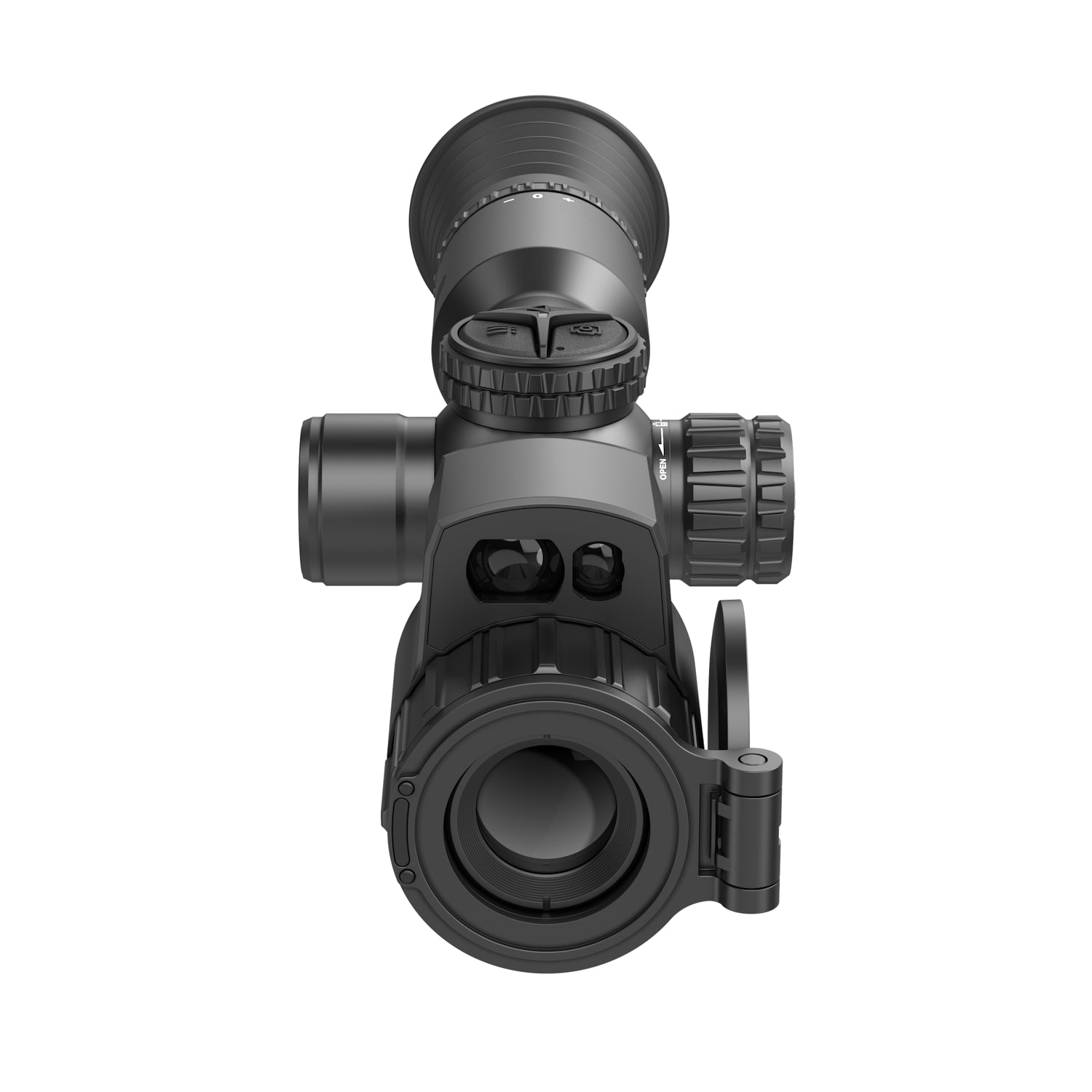

HIKMICRO Alpex 4K LITE LRF A40EL Digital Day and Night Vision Rifle Scope

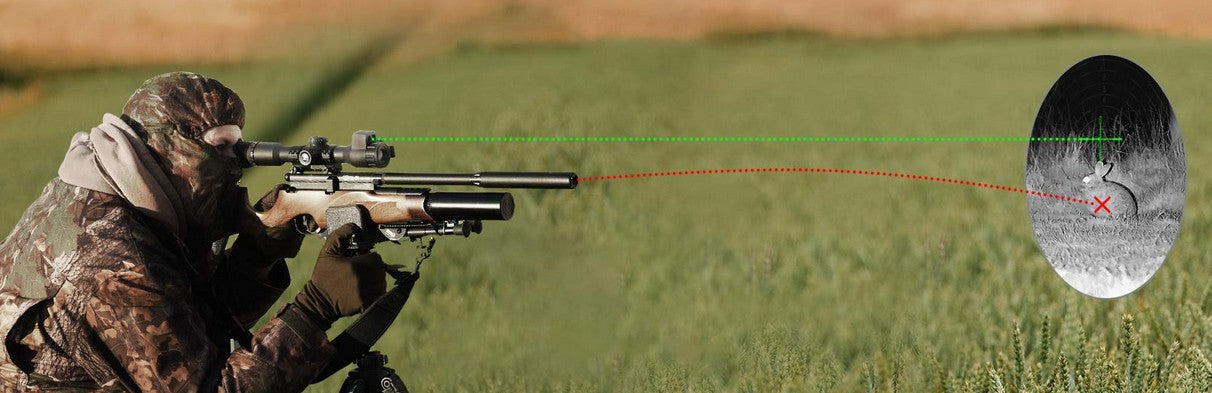

The HIKMICRO ALPEX 4K A40EL is engineered for shooters who demand precision without compromise. Combining a 3840×2160 4K CMOS sensor with a 40mm F2.0 lens, this digital day and night vision scope delivers exceptional image clarity and target recognition in virtually any lighting condition. What sets the A40EL apart is its integrated 1000-meter laser rangefinder with real-time ballistic calculation. This system automatically adjusts reticle holdover based on distance and pellet type—ensuring deadly accuracy whether you're zeroing in on rats at 30 meters or challenging a 90-meter shot with a .25 caliber.

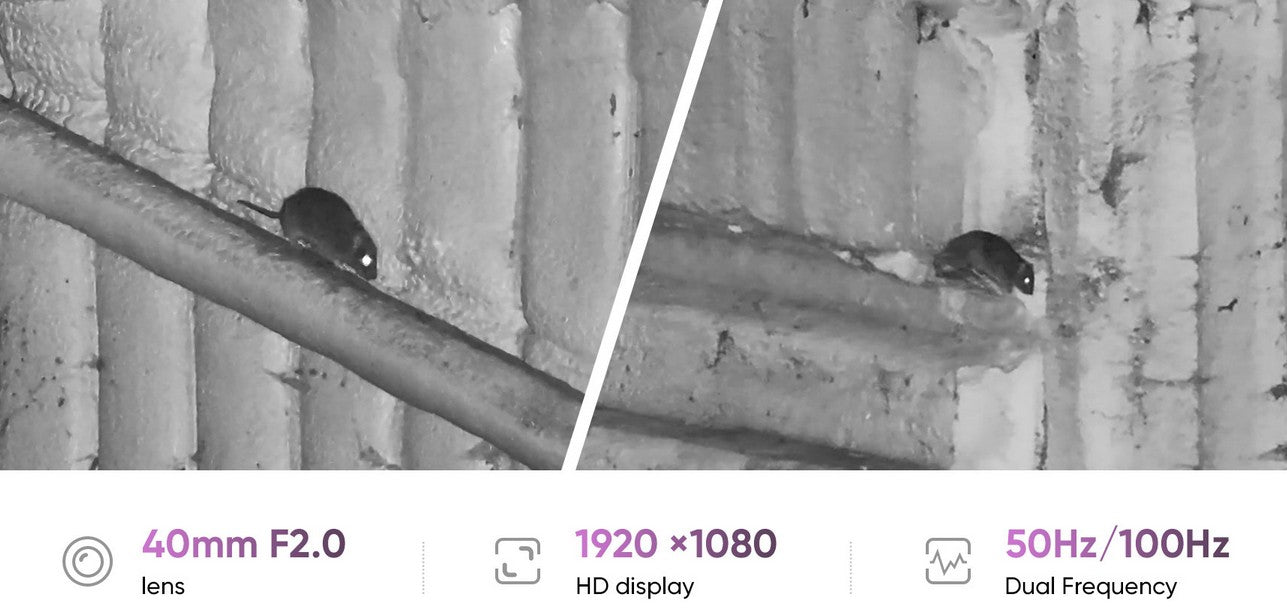

Designed for true around-the-clock use, the A40EL leverages adaptive low-light technology to deliver uncompromised detail at dawn, dusk, and in total darkness. Operate in five vision modes—Day, Night, Auto, Green, and Yellow—tailored for varied terrain and ambient light. With dual imaging frequencies (50Hz in 4K, 100Hz in 1080P), the scope ensures crystal-clear static observation and seamless motion tracking with zero blur. A rapid one-second startup puts the A40EL into action instantly, critical for reactive scenarios in the field.

At just 474g and 25% slimmer than conventional optics, the ALPEX 4K A40EL is purpose-built for airguns and tactical manoeuvrability. The 30mm magnesium-alloy tube form factor ensures universal compatibility and lightweight handling—perfect for stalking pests in tight quarters or carrying across open farmland. Intuitive controls are designed for gloved or wet-hand operation, making it field-ready in every sense.

The A40EL is powered by an internal lithium battery with support for an external rechargeable 18650 cell, providing up to 7 hours of continuous operation. Recoil-activated recording with built-in audio and 32GB of internal EMMC storage allows you to capture every shot with forensic clarity. Whether you're targeting, ranging, recording, or navigating at night, the A40EL is the total field solution for modern airgun hunters.

Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.

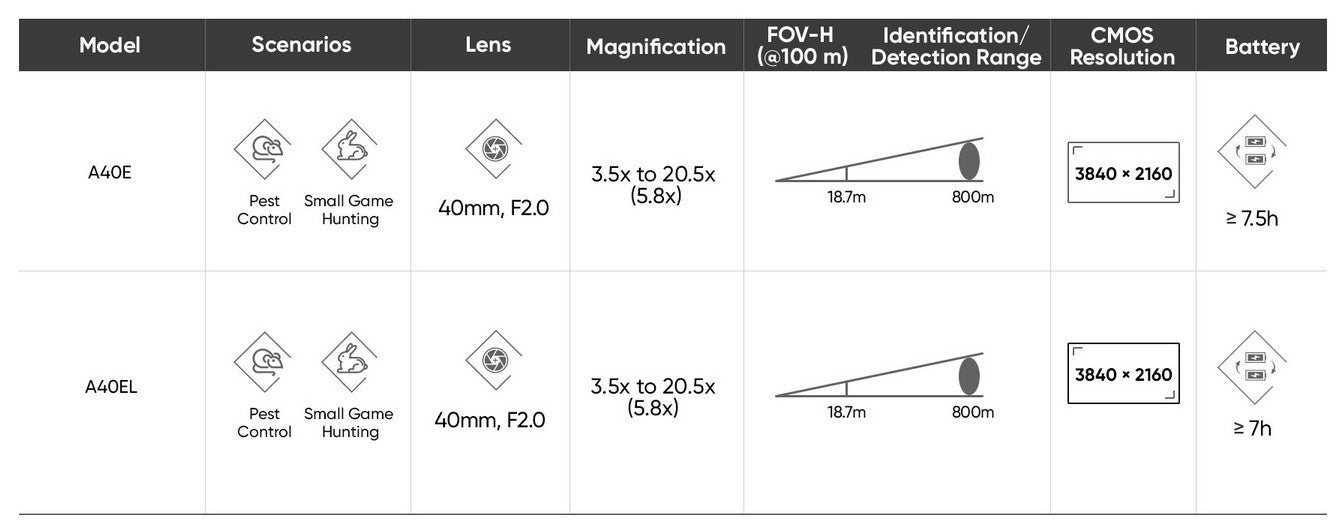

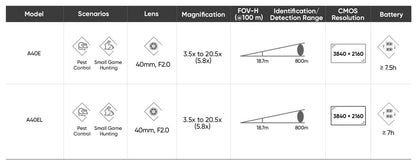

• Max. Resolution  3840 × 2160
• Frame Rate  50 Hz (4K), 100 Hz (1080P)
• Lens  40 mm, F2.0
• Detection Range (Day)  800 m
• Minimum Focusing Distance  2 m
• Magnification Range  3.5× to 20.5×
• Base Magnification  5.8×
• Zoom  Continuous
• Step Values  0.5×, 1×, 2×, 3×, 4×
• Field of View (Degrees)  10.7° × 6.1°
• Field of View (Metres @100 m)  18.7 m × 10.1 m
• Display Type  OLED
• Display Size  0.49 inch
• Display Resolution  1920 × 1080
• Image Modes  Day, Night, Auto, Green, Yellow
• Exit Pupil  6 mm
• Eye Relief  45 mm
• Dioptre Adjustment  -5 D to +5 D
• Video Recording  On-board (1920 × 1080)
• Photo Capture  Yes
• Audio Recording  Yes
• Recoil-Activated Recording  Yes
• Standby Mode  Yes
• Storage  32 GB built-in EMMC
• Picture-in-Picture (PIP)  Yes
• Freeze Zeroing  Yes
• Zeroing Profiles  5

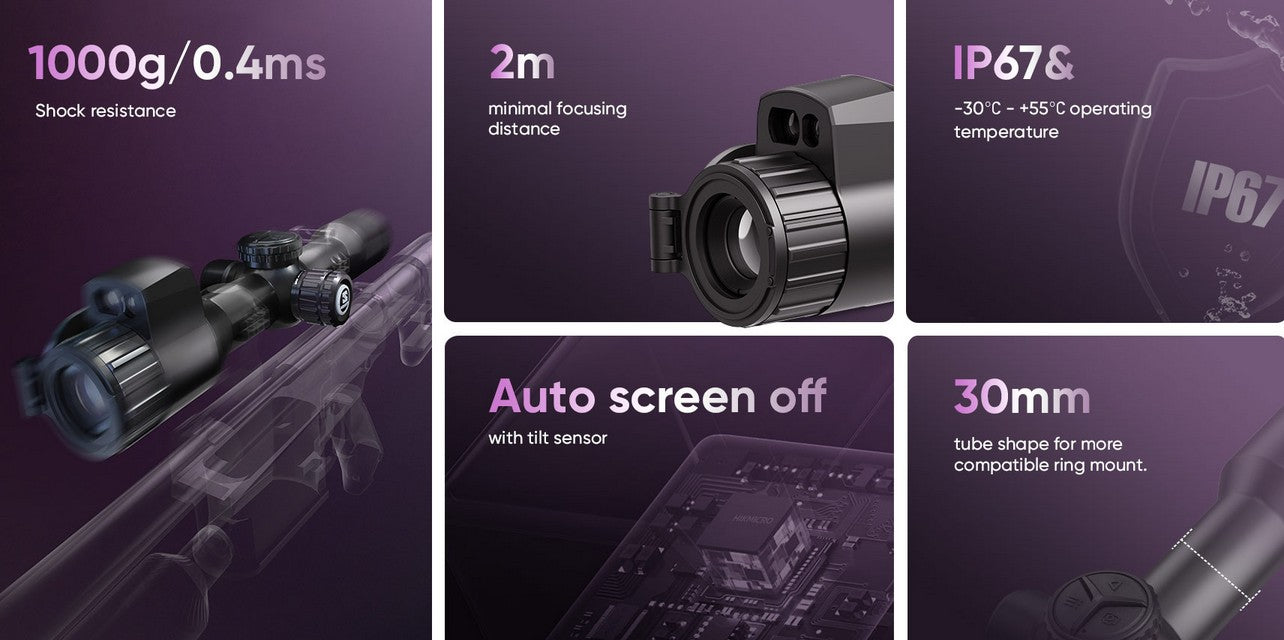

• Maximum Recoil Resistance  1000 g / 0.4 ms
• Wi-Fi Hotspot  Yes
• Ballistic Calculation  Yes
• Click Value  1 click = 1 cm @ 100 m
• Battery Type (Internal)  Rechargeable lithium battery
• Battery Type (External)  Replaceable & rechargeable 18650 battery
• Operating Time  Up to 7 hours (@25°C, Hotspot off)
• Charging Interface  USB Type-C (5 VDC / 2 A)
• Direct Charging  Supported only with internal battery
• Mounting  Standard 30 mm
• Protection Level  IP67
• Operating Temperature  -30°C to 55°C (-22°F to 131°F)

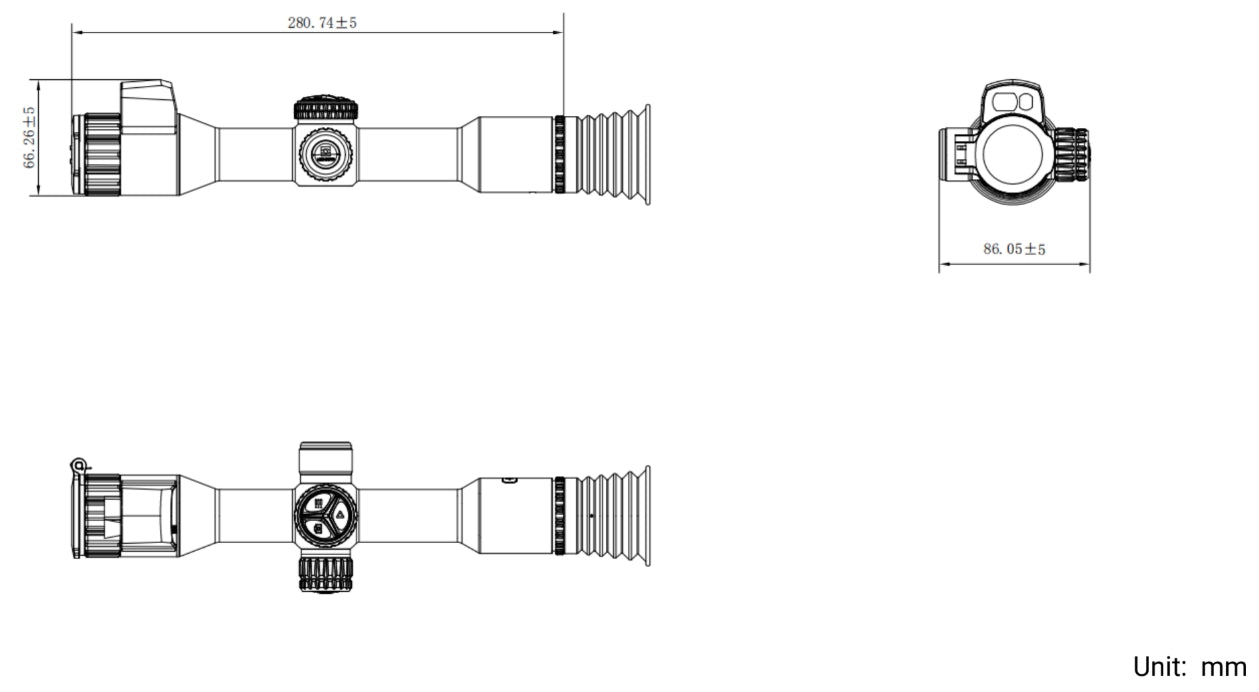

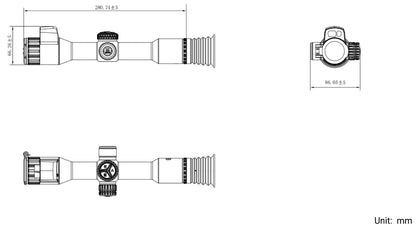

• Dimensions  280.7 mm × 86.1 mm × 66.3 mm (without eyepiece)
• Weight  474 g (without external battery)
• Laser Rangefinder – Safety Class  Class 1
• Laser Rangefinder – Wavelength  905 nm
• Laser Rangefinder – Minimum Measuring Range  3 m
• Laser Rangefinder – Maximum Measuring Range  1000 m
• Laser Rangefinder – Measurement Accuracy  ±1 m
